STM32CubeMX adc

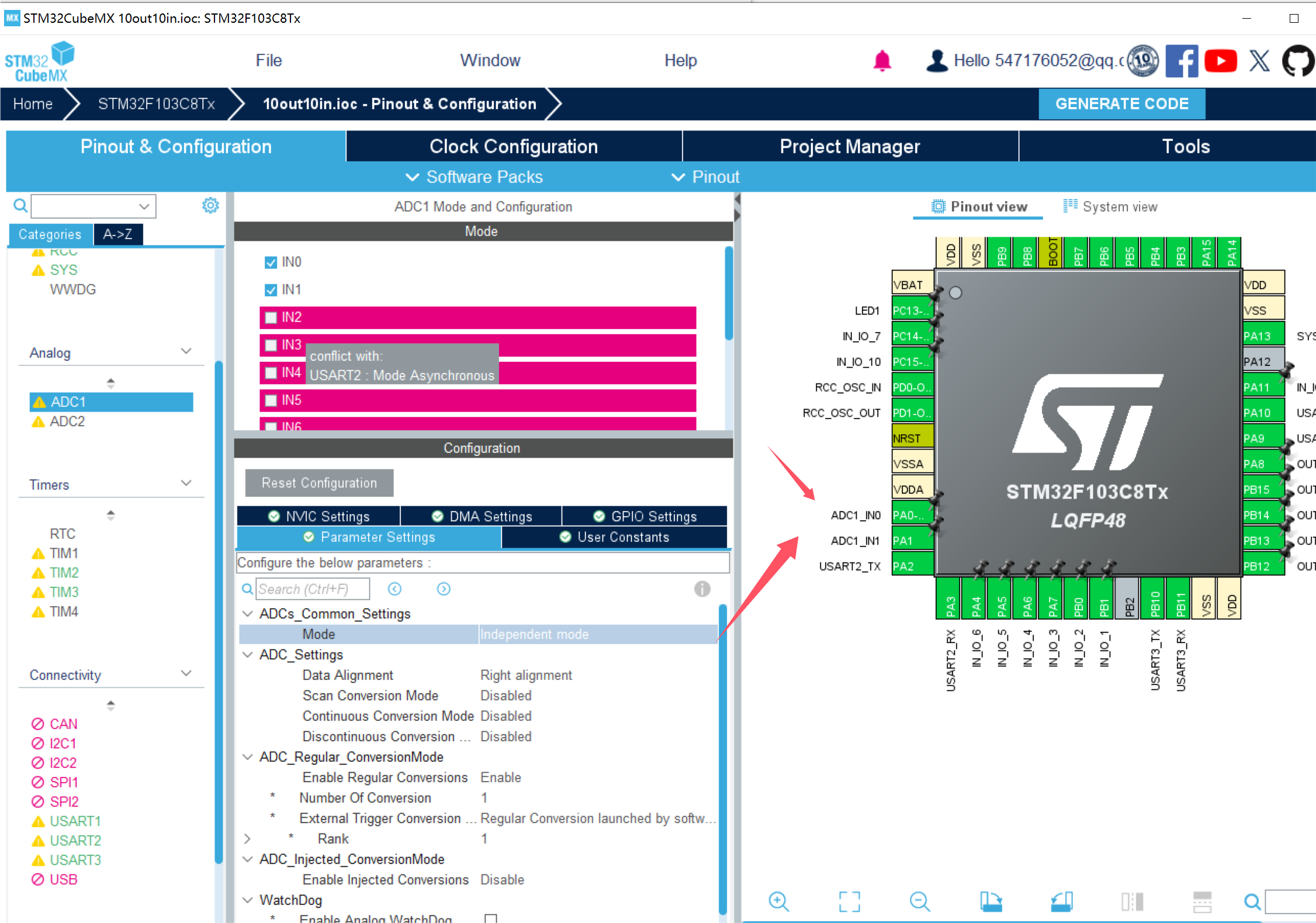

图形设置
adc.c
/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file adc.c
* @brief This file provides code for the configuration
* of the ADC instances.
******************************************************************************
* @attention
*
* Copyright (c) 2024 STMicroelectronics.
* All rights reserved.
*
* This software is licensed under terms that can be found in the LICENSE file
* in the root directory of this software component.
* If no LICENSE file comes with this software, it is provided AS-IS.
*
******************************************************************************
*/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "adc.h"
/* USER CODE BEGIN 0 */
/* USER CODE END 0 */
ADC_HandleTypeDef hadc1;
/* ADC1 init function */
void MX_ADC1_Init(void)
{
/* USER CODE BEGIN ADC1_Init 0 */
/* USER CODE END ADC1_Init 0 */
ADC_ChannelConfTypeDef sConfig = {0};
/* USER CODE BEGIN ADC1_Init 1 */
/* USER CODE END ADC1_Init 1 */
/** Common config
*/
hadc1.Instance = ADC1;
hadc1.Init.ScanConvMode = ADC_SCAN_DISABLE;
hadc1.Init.ContinuousConvMode = DISABLE;
hadc1.Init.DiscontinuousConvMode = DISABLE;
hadc1.Init.ExternalTrigConv = ADC_SOFTWARE_START;
hadc1.Init.DataAlign = ADC_DATAALIGN_RIGHT;
hadc1.Init.NbrOfConversion = 1;
if (HAL_ADC_Init(&hadc1) != HAL_OK)
{
Error_Handler();
}
/** Configure Regular Channel
*/
sConfig.Channel = ADC_CHANNEL_0;
sConfig.Rank = ADC_REGULAR_RANK_1;
sConfig.SamplingTime = ADC_SAMPLETIME_1CYCLE_5;
if (HAL_ADC_ConfigChannel(&hadc1, &sConfig) != HAL_OK)
{
Error_Handler();
}
/* USER CODE BEGIN ADC1_Init 2 */
/* USER CODE END ADC1_Init 2 */
}
void HAL_ADC_MspInit(ADC_HandleTypeDef* adcHandle)
{
GPIO_InitTypeDef GPIO_InitStruct = {0};
if(adcHandle->Instance==ADC1)
{
/* USER CODE BEGIN ADC1_MspInit 0 */
/* USER CODE END ADC1_MspInit 0 */
/* ADC1 clock enable */
__HAL_RCC_ADC1_CLK_ENABLE();
__HAL_RCC_GPIOA_CLK_ENABLE();
/**ADC1 GPIO Configuration
PA0-WKUP ------> ADC1_IN0
PA1 ------> ADC1_IN1
*/
GPIO_InitStruct.Pin = GPIO_PIN_0|GPIO_PIN_1;
GPIO_InitStruct.Mode = GPIO_MODE_ANALOG;
HAL_GPIO_Init(GPIOA, &GPIO_InitStruct);
/* USER CODE BEGIN ADC1_MspInit 1 */
/* USER CODE END ADC1_MspInit 1 */
}
}
void HAL_ADC_MspDeInit(ADC_HandleTypeDef* adcHandle)
{
if(adcHandle->Instance==ADC1)
{
/* USER CODE BEGIN ADC1_MspDeInit 0 */
/* USER CODE END ADC1_MspDeInit 0 */
/* Peripheral clock disable */
__HAL_RCC_ADC1_CLK_DISABLE();
/**ADC1 GPIO Configuration
PA0-WKUP ------> ADC1_IN0
PA1 ------> ADC1_IN1
*/
HAL_GPIO_DeInit(GPIOA, GPIO_PIN_0|GPIO_PIN_1);
/* USER CODE BEGIN ADC1_MspDeInit 1 */
/* USER CODE END ADC1_MspDeInit 1 */
}
}
/* USER CODE BEGIN 1 */
//https://juejin.cn/post/7288609217958559779
//ch(1-6Chnnal),times(读取次数)
uint32_t ADC_Get_Average(uint8_t ch,uint8_t times)
{
ADC_ChannelConfTypeDef sConfig; //通道初始化
uint32_t value_sum=0;
uint8_t i;
switch(ch) //选择ADC通道
{
case 0:sConfig.Channel = ADC_CHANNEL_0;break;
case 1:sConfig.Channel = ADC_CHANNEL_1;break;
}
sConfig.SamplingTime = ADC_SAMPLETIME_239CYCLES_5; //采用周期239.5周期
sConfig.Rank = 1;
HAL_ADC_ConfigChannel(&hadc1,&sConfig);
for(i=0;i<times;i++)//采集次数
{
HAL_ADC_Start(&hadc1); //启动转换
HAL_ADC_PollForConversion(&hadc1,30); //等待转化结束
value_sum += HAL_ADC_GetValue(&hadc1); //求和
HAL_ADC_Stop(&hadc1); //停止转换
}
return value_sum/times; //返回平均值
}
/* USER CODE END 1 */
adc.h
/* USER CODE BEGIN Header */
/**
******************************************************************************
* @file adc.h
* @brief This file contains all the function prototypes for
* the adc.c file
******************************************************************************
* @attention
*
* Copyright (c) 2024 STMicroelectronics.
* All rights reserved.
*
* This software is licensed under terms that can be found in the LICENSE file
* in the root directory of this software component.
* If no LICENSE file comes with this software, it is provided AS-IS.
*
******************************************************************************
*/
/* USER CODE END Header */
/* Define to prevent recursive inclusion -------------------------------------*/
#ifndef __ADC_H__
#define __ADC_H__
#ifdef __cplusplus
extern "C" {
#endif
/* Includes ------------------------------------------------------------------*/
#include "main.h"
/* USER CODE BEGIN Includes */
/* USER CODE END Includes */
extern ADC_HandleTypeDef hadc1;
/* USER CODE BEGIN Private defines */
/* USER CODE END Private defines */
void MX_ADC1_Init(void);
/* USER CODE BEGIN Prototypes */
uint32_t ADC_Get_Average(uint8_t ch,uint8_t times);
/* USER CODE END Prototypes */
#ifdef __cplusplus
}
#endif
#endif /* __ADC_H__ */
main.c
/* USER CODE BEGIN WHILE */
HAL_ADCEx_Calibration_Start(&hadc1); //AD校准
uint32_t n = 0;
while (1)
{
n++;
if(n > 72000000 / 5 ){// 1秒的中断间隔
int adc0 = ADC_Get_Average(0,1);//采集
int adc1 = ADC_Get_Average(1,1);
printf( "0读到的值:%d\r\n",adc0 );
printf( "0转换为电压:%.4f \r\n",adc0 * 3.3f/4096 );
printf( "1读到的值:%d\r\n",adc1 );
printf( "1转换为电压:%.4f \r\n",adc1 * 3.3f/4096 );
HAL_Delay(5000);
n=0;
LED1_On_Off();
}
/* USER CODE END WHILE */
